Tensys® Small Load Projection Marker - Rear with 3-Point Magnetic Fixing
Web Order Price
PRICE BREAKS FOR WEB ORDERS ONLY

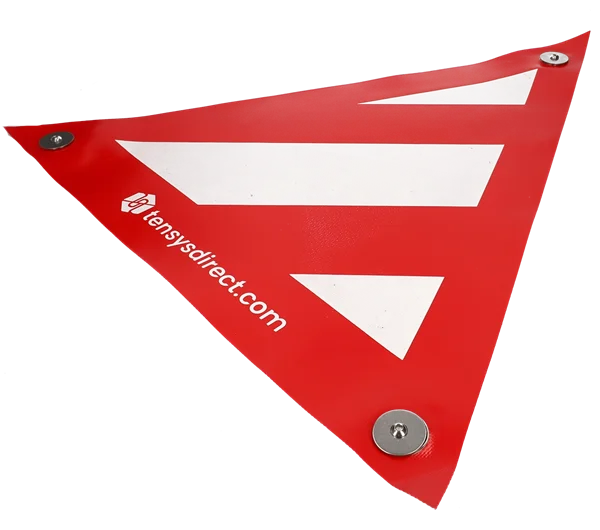

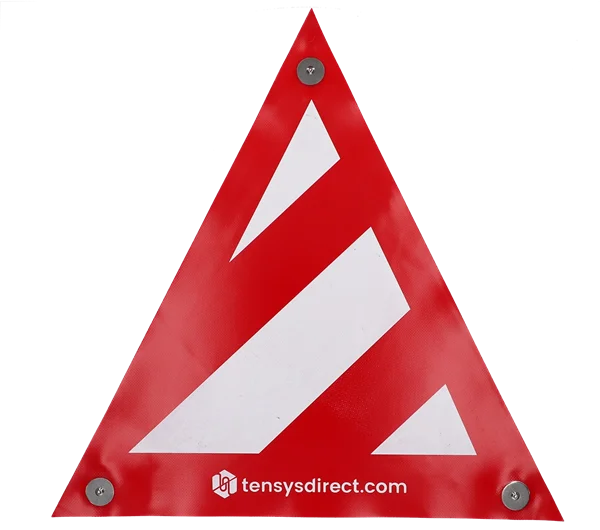

Tensys® Small Load Projection Marker - Rear with 3-Point Magnetic Fixing
The Tensys® Small Load Projection Marker - Rear provides a simple and effective method of marking projecting loads to improve road safety and help meet legal requirements. Designed for transport operators, haulage companies, and commercial vehicle users, this marker board clearly identifies overhanging loads to other road users.
Manufactured from durable 900gsm PVC and finished in the legally recognised red and white hazard pattern, the marker features 100mm wide white screen-printed diagonal stripes at 45° and measures not less than 610mm on each side, conforming to the requirements of Schedule 12, Part 11 of the Road Vehicles (Construction and Use) Regulations.

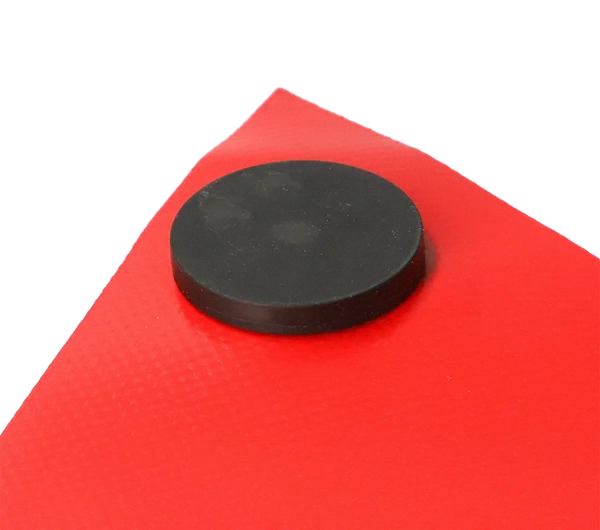

This version is supplied with a 3-point magnetic fixing system, incorporating powerful N50 neodymium magnets with M6 threaded mounts for secure attachment to steel-bodied vehicles, trailers, and loads. The magnetic mounting system allows for rapid installation and removal without the need for permanent fixings.
Projection markers are a legal requirement where a projecting load is carried, or where a projecting special appliance is permanently fitted to a vehicle. Front and rear markers must be positioned as close as practicable to the end of the projection, be clearly visible to other road users, and be no more than 2.5 metres above the road surface.
For loads projecting more than 2 metres to the front or 3 metres to the rear, additional side markers must also be fitted to either side of the projection.
Features & Benefits
- Rear load projection marker conforming to UK regulations
- Durable 900gsm PVC construction
- High-visibility red finish with white diagonal hazard stripes
- Powerful 3-point N50 neodymium magnetic fixing system
- M6 threaded magnets for secure mounting
- Quick installation and removal without drilling or permanent fixings
- Suitable for commercial vehicles, trailers, abnormal loads, and specialist transport applications
- Helps improve visibility of projecting and overhanging loads
- Marker dimensions comply with statutory requirements, with each side measuring at least 610mm
Ideal for transport operators looking for a convenient and robust solution, the Tensys® Small Load Projection Marker helps ensure overhanging loads remain clearly visible and safely marked during transit.
